Soils near Sunnyvale's downtown often behave differently than those closer to the baylands. A clayey fill near El Camino Real may require the Modified Proctor test, while a sandy terrace off Homestead Road might only need the Standard method. The Proctor test determines the optimum moisture content and maximum dry density for each specific soil type. This data directly guides compaction specifications for slabs, pavements, and retaining walls across Sunnyvale. Without site-specific Proctor results, compaction targets are guesswork. Builders who skip this step risk settlement under driveways or structural slabs. The difference between a well-compacted fill and a loose one often comes down to those Proctor numbers. That is why engineers in Sunnyvale routinely request both Standard and Modified versions depending on the project load requirements. For deeper foundations, the values also feed into sondaje-spt correlations to estimate bearing capacity.
Without site-specific Proctor results, compaction targets are guesswork. The moisture-density curve is the blueprint for every lift of fill.
Method and coverage
The Proctor test uses a 4-inch or 6-inch mold, a standard hammer, and a calibrated drop height. In Sunnyvale, field crews collect representative bulk samples from the excavation area before any fill placement. The test is run in five layers for the Standard method (ASTM D698) or five layers with a heavier hammer for the Modified method (ASTM D1557). Each layer receives a set number of blows. Moisture is added incrementally to bracket the optimum water content. The results produce a compaction curve showing dry density versus moisture content. Sunnyvale's alluvial clays often show a sharp peak, meaning the moisture window is narrow. Sandy soils near the bay produce a flatter curve. Knowing this curve is essential before placing fill for parking lots or slab-on-grade homes. The lab also cross-checks results against limites-atterberg to confirm soil classification and compaction behavior.

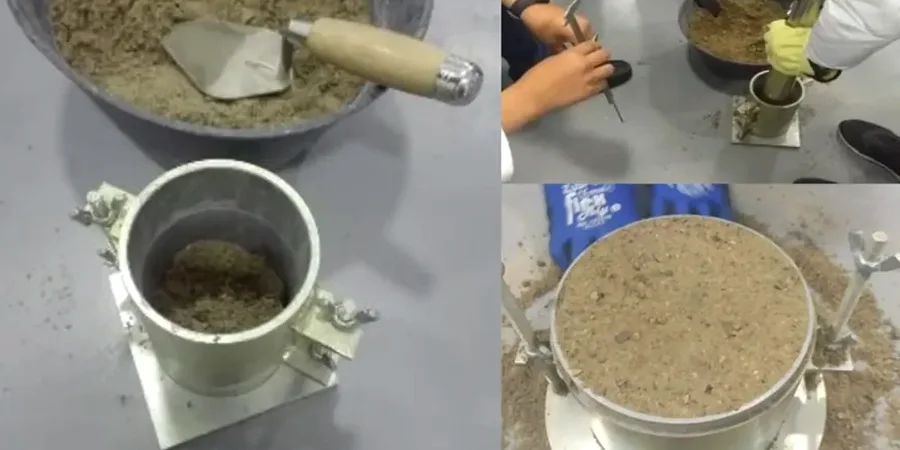

Technical reference image — Sunnyvale
Regional considerations
A common mistake in Sunnyvale is using default compaction values from a geotechnical report done for a different site. Builders sometimes assume the same Proctor curve applies to all fills on a large subdivision. That assumption fails when the soil borrow source changes or when grading exposes a different stratum. If the fill is compacted at the wrong moisture content, the material won't reach the required density. Over time, the fill settles unevenly, cracking slabs or misaligning utilities. The risk is higher in Sunnyvale's older residential areas where undocumented fill exists from previous grading. A Proctor test specific to each borrow source eliminates this uncertainty. It also prevents the cost of rework when field density tests fail because the target was wrong from the start.
Compaction curve, OMC, MDD, and moisture-density table
Related services
01
Standard Proctor Test (ASTM D698)
Suitable for residential slabs, light commercial parking lots, and utility trench backfills where compaction loads are moderate. The test uses a 5.5-lb hammer dropped 12 inches. It delivers a compaction energy of 12,400 ft-lbf/ft³. This method is the most common for Sunnyvale's single-family home projects and small retaining wall fills.
02
Modified Proctor Test (ASTM D1557)
Designed for high-load applications such as airport aprons, heavy industrial floors, and roadway subgrades. The Modified test uses a 10-lb hammer with an 18-inch drop, producing 56,000 ft-lbf/ft³. In Sunnyvale, this method is specified for commercial developments near Mathilda Avenue and for deep fills supporting parking structures.
What is the difference between Standard and Modified Proctor tests?
The key difference is the compaction energy applied. Standard Proctor uses a 5.5-lb hammer dropping 12 inches, delivering 12,400 ft-lbf/ft³. Modified Proctor uses a 10-lb hammer dropping 18 inches, producing 56,000 ft-lbf/ft³. Modified is used when the fill will be subjected to heavier loads, such as under industrial slabs or high-traffic roadways. Your geotechnical engineer selects the method based on the project's design requirements.
How much does a Proctor test cost in Sunnyvale?
A Standard Proctor test typically ranges from US$110 to US$170 per sample. Modified Proctor tests cost between US$160 and US$240 per sample due to the higher energy and additional effort. Prices vary depending on the number of moisture points required and whether the sample is from a single borrow source or multiple locations. Contact us for a quote based on your specific scope.
When do I need a Modified Proctor instead of Standard?
You need a Modified Proctor when the fill will support heavy loads, such as under airport runways, industrial warehouse slabs, or highway embankments. In Sunnyvale, projects near the Caltrain corridor or along Central Expressway often require Modified Proctor because of the traffic loading and deeper fills. Your structural engineer or geotechnical report will specify which method applies.
Can Proctor results be used for field density testing?
Yes. The Proctor test provides the maximum dry density (MDD) and optimum moisture content (OMC) that become the target for field density tests like the sand cone or nuclear gauge. Field density is expressed as a percentage of the Proctor MDD. Typically, specifications require 95% of Standard Proctor or 98% of Modified Proctor for structural fills. Without the Proctor curve, field test results have no benchmark.
