Sunnyvale sits on alluvial soils from the Santa Clara Valley, with a shallow groundwater table often encountered between 5 and 15 feet deep. These silty clays and sandy layers shift with seasonal rain, and the area's proximity to the San Andreas fault means ground accelerations can exceed 0.6g during a major event. That combination makes slope stabilization design in Sunnyvale a real challenge for any project near creeks, railroad cuts, or highway embankments. Our lab starts every job with a thorough site investigation, drilling borings and running lab tests to get the shear strength and consolidation data right. We also integrate a microzonificación sísmica study to map out amplification zones before committing to a stabilization method.
Sunnyvale's clay plasticity and seismic ground motions demand a slope design that accounts for both wet-dry cycles and peak ground accelerations above 0.6g.
Method and coverage
A common mistake we see here is contractors assuming a simple 2:1 slope will hold forever without accounting for the high plasticity of Sunnyvale's clay layers. When those clays dry out in summer and then swell in winter, the cycle reduces cohesion dramatically. We work with the design team to model both short-term undrained and long-term drained conditions, using effective stress analyses to avoid surprises. For cuts deeper than 15 feet we generally recommend combining a soil nail wall with geocompuestos para drenaje to relieve pore pressure, and where the native soil is too weak we specify columnas de grava to improve bearing below the slope toe. Every design gets checked against the IBC 2021 seismic requirements and the ASCE 7 hazard maps for Cupertino fault zone.

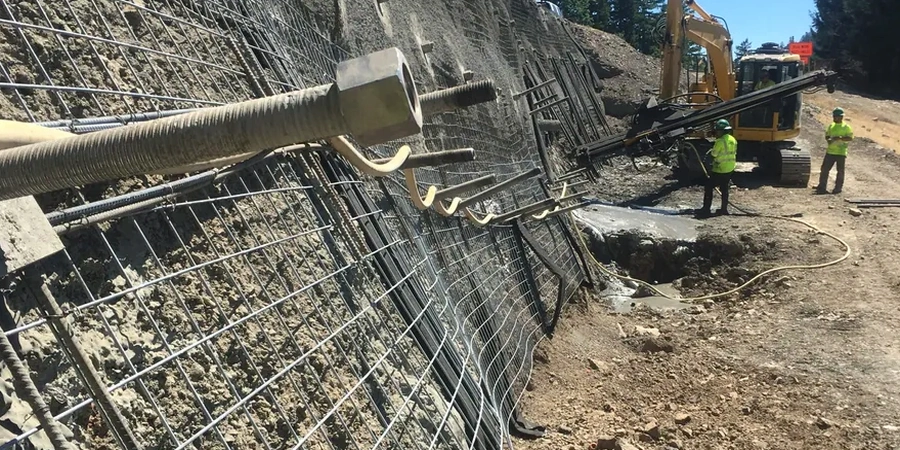

Technical reference image — Sunnyvale
Regional considerations
We set up our drilling rigs on Sunnyvale streets or vacant lots, often working inside traffic control zones near busy corridors like El Camino Real or Mathilda Avenue. The rig advances a 6-inch hollow‑stem auger to collect undisturbed samples, while our field technician logs the blow counts every 5 feet using a 140‑pound automatic hammer. Getting good sample recovery in the sandy layers is tricky because the water table comes up fast, but we run Shelby tubes carefully to minimize disturbance. Once the cores reach the lab, we perform direct shear and triaxial tests to confirm the parameters the design depends on. That field‑to‑lab chain is what makes slope stabilization design in Sunnyvale reliable enough to pass city review and hold up during winter storms.
We drill borings up to 40 feet deep, log soil types, run index tests (Atterberg limits, moisture content), and perform consolidated‑undrained triaxial or direct shear tests. Results feed directly into your stability model.
02
Stability Analysis & Design Recommendations
We run limit‑equilibrium and finite‑element analyses for static and seismic conditions. The final report includes recommended slope angles, reinforcement types (soil nails, geogrids, or buttress fills), drainage details, and construction specifications.
Standards that apply
ASCE/SEI 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures), IBC 2021 (International Building Code, Chapter 18 – Soils and Foundations), ASTM D3080 (Direct Shear Test) and ASTM D4767 (Consolidated Undrained Triaxial), FHWA NHI-05 (Slope Stability Reference Guide)
Frequently asked questions
What slope stabilization methods work best for Sunnyvale's clay soils?
For the silty clays typical of Sunnyvale, we commonly recommend soil nail walls with shotcrete facing for cuts up to 30 feet, and geogrid‑reinforced slopes where space allows a flatter angle. In areas with high groundwater, a drainage blanket behind the wall is essential to keep pore pressures low.
How does the seismic risk in Sunnyvale affect slope design?
Sunnyvale is in Seismic Zone 4, with design peak ground accelerations around 0.6g. Our analyses check both pseudo‑static (horizontal coefficient = 0.5×PGA) and post‑seismic residual strength conditions. We also evaluate liquefaction potential in the deeper sandy layers using the NCEER 2001 procedure.
How much does a slope stabilization design study cost in Sunnyvale?
For a typical residential or light commercial project, the geotechnical investigation and stability analysis range between US$1,550 and US$6,000, depending on the number of borings, lab tests, and the complexity of the slope geometry. We provide a fixed‑price quote after an initial site walk.
Do I need a design review from the City of Sunnyvale before construction?
Yes. Any slope steeper than 2:1 that is higher than 10 feet requires a geotechnical report sealed by a California‑licensed civil engineer. The city's Building Division checks the report against IBC 2021 and the Sunnyvale Municipal Code before issuing a grading permit.
