Sunnyvale sits on the alluvial fans of the Santa Cruz Mountains, where seasonal rainfall and high water tables create complex subsurface conditions. The city's proximity to the San Andreas Fault system means seismic site classification is not optional — it is mandatory under ASCE 7. A thorough soil mechanics study in Sunnyvale evaluates bearing capacity, liquefaction potential, and soil stiffness before any foundation design begins. The soft clays and dense sands found across the city require careful sampling using ASTM D1586 standard penetration tests. Before approving shoring or excavation plans, we often recommend a complementary densidad cono arena field test to verify compaction in fill areas, especially near Moffett Field where historical bay mud deposits remain problematic.
The alluvial clays and high groundwater of Sunnyvale demand seismic site classification per ASCE 7 before any foundation design begins.
Method and coverage
Our field crews deploy a CME 55 truck-mounted drill rig for the hollow-stem auger borings typical of Sunnyvale projects. We log each borehole continuously following ASTM D2487, collecting disturbed and undisturbed samples at 1.5-meter intervals. The equipment allows us to reach depths of 25 meters, sufficient to cross the young alluvium and reach the older Pleistocene gravels beneath the city. Laboratory work includes water content, Atterberg limits, and direct shear tests on the silty clays that dominate the El Camino Real corridor. For projects near the Stevens Creek floodplain, we integrate falla taludes stability analysis when evaluating cut slopes or temporary excavations. Every soil mechanics study in Sunnyvale follows the IBC Chapter 18 requirements for foundation investigation.

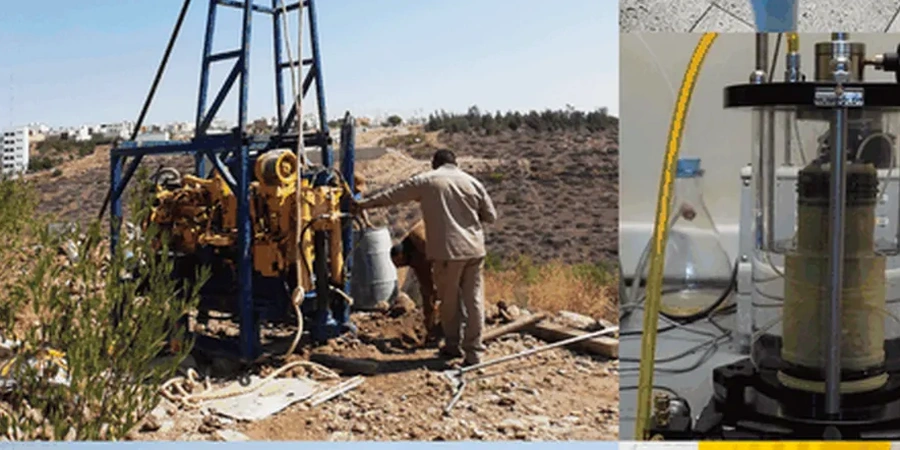

Technical reference image — Sunnyvale
Regional considerations
The difference between a site near Lakewood Park and one on the Bernardo Avenue corridor can be dramatic. In the former, you might find 12 feet of soft clay over dense sand; in the latter, shallow gravels allow spread footings at 3 feet. A soil mechanics study in Sunnyvale must account for these lateral variations. The biggest risk we see is underestimating liquefaction settlement in a seismic event. Improvement before construction reduces that risk significantly, but it requires proper characterization first. Missing a soft layer under a mat foundation can lead to differential settlements exceeding 2 inches in a major earthquake.
Continuous hollow-stem auger borings to 25 m depth with SPT at 1.5 m intervals. Undisturbed tube samples collected for laboratory testing. Logging per ASTM D2487.
02
Laboratory Soil Testing
Water content, Atterberg limits, grain size distribution, direct shear, and unconfined compression. Triaxial CU tests for seismic analysis. All tests under ASTM standards.
03
Seismic Site Classification
Shear wave velocity correlation from SPT N-values. Site class determination per ASCE 7 Table 20.3-1. Liquefaction triggering analysis using Youd-Idriss 2001 methodology.
04
Foundation Recommendations Report
Allowable bearing capacity for spread footings and mat foundations. Settlement estimates. Lateral earth pressures for retaining walls. Improvement recommendations where needed.
Standards that apply
ASCE 7-22 (Seismic Site Classification), IBC 2021 Chapter 18 (Soils and Foundations), ASTM D1586-18 (Standard Penetration Test), ASTM D2487-17 (Classification of Soils for Engineering Purposes)
Frequently asked questions
What does a soil mechanics study in Sunnyvale include?
It includes field borings with SPT testing, laboratory classification and strength tests, seismic site classification per ASCE 7, liquefaction evaluation, and a foundation recommendation report with allowable bearing capacities and settlement estimates.
How much does a soil mechanics study cost in Sunnyvale?
For a typical single-family project, expect a range between US$2,790 and US$5,950 depending on the number of borings, depth of investigation, and laboratory testing scope. Larger commercial projects with seismic analysis cost more.
How deep should borings go for a Sunnyvale home addition?
Borings should extend at least 5 feet below the deepest foundation element or until encountering dense bearing strata. For typical two-story additions, 15 to 20 feet is common to cross the soft alluvium and reach competent soils.
Does Sunnyvale require a soil mechanics study for a permit?
Yes, the City of Sunnyvale Building Division requires a geotechnical report for all new structures and most additions per IBC Chapter 18. The report must include site classification, liquefaction assessment, and foundation recommendations signed by a California licensed geotechnical engineer.
