Sunnyvale sits atop the alluvial fans of the Santa Clara Valley, where the transition from the Santa Cruz Mountains to flat baylands creates a complex subsurface of interbedded silts, clays, and sandy gravel layers. The shallow groundwater table, often encountered between 8 and 15 feet, combined with the presence of expansive clay lenses, makes slope stability a genuine concern for hillside developments and cut slopes along Central Expressway. Understanding how these materials behave under saturated conditions and seismic loading is the core of any slope failure analysis in Sunnyvale. The city falls within Seismic Zone 4 per ASCE 7, meaning ground accelerations can exceed 0.4g during a major event, which directly impacts the shear strength parameters used in limit equilibrium models. We routinely calibrate our numerical models against actual failure surfaces observed during the 1989 Loma Prieta earthquake, when several embankments along Sunnyvale's creek corridors experienced shallow translational slides.
In Sunnyvale's expansive clays, a 20% increase in moisture content can reduce undrained shear strength by half, turning a stable slope into a progressive failure within days.
Method and coverage
A recent project on a 2:1 fill slope near the Sunnyvale Golf Course required a thorough investigation before the city would approve a retaining structure. The slope had shown tension cracks after the winter rains, and the homeowner's association needed answers. We mobilized a drill rig to extract continuous soil samples and installed standpipes to monitor the seasonal rise in pore pressure. Before running the stability analysis, we recommended a compression test on undisturbed samples to confirm the undrained shear strength of the clay layers, and a direct shear test on the sandy silt interface where the slip surface was suspected. The laboratory work followed ASTM D3080 and D2166, with results feeding into a Spencer analysis that accounted for both circular and non-circular failure surfaces. The final factor of safety came in at 1.1 under static conditions, which triggered a design change involving drainage improvements and a soil nail wall.

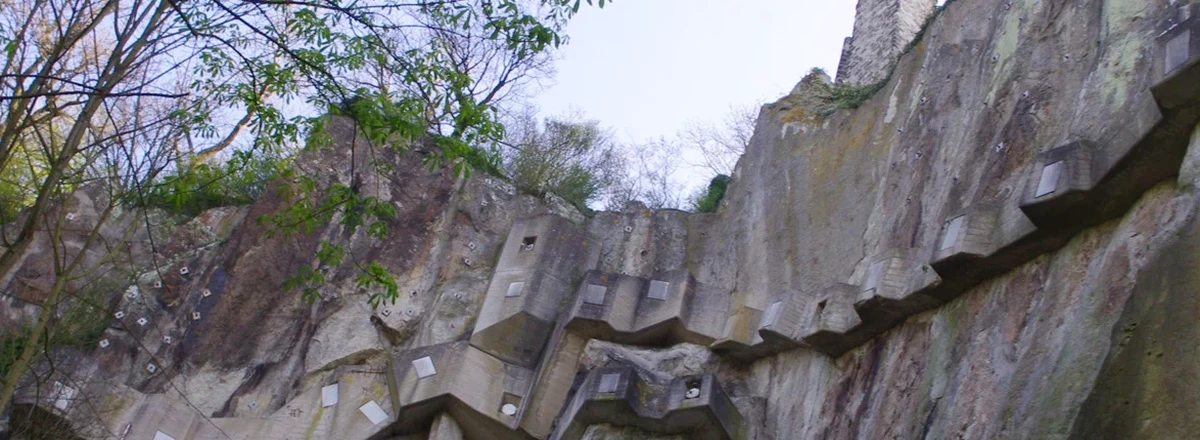

Technical reference image — Sunnyvale
Regional considerations
The contrast between the dry Mediterranean summers and the intense winter storms in Sunnyvale creates a cyclic wetting-drying pattern that progressively weakens clay-rich soils. During the El Niño winters of 2016–2018, we documented at least a dozen failures along the Matadero Creek and Permanente Creek corridors where the factor of safety dropped below 1.0 after prolonged saturation. The risk isn't limited to large landslides; shallow raveling failures on 1.5:1 slopes are common in residential backyards where landscaping irrigation adds water directly to the soil profile. A proper slope failure analysis in Sunnyvale must consider these transient pore pressure conditions, not just the static groundwater table. Ignoring the perched water table that forms after heavy rain is the single most common mistake we see in reports prepared by out-of-area firms.
We use Slide2 and SLOPE/W for circular (Bishop simplified) and non-circular (Spencer, Morgenstern-Price) failure surfaces. Input parameters come from direct shear and triaxial tests performed in our ISO 17025-accredited lab. This is the standard approach for most residential and commercial slope permits in Sunnyvale.
02
Seismic Slope Stability (Newmark Sliding Block)
For projects requiring seismic compliance under ASCE 7, we perform Newmark displacement analyses using ground motions specific to the Sunnyvale basin. We calculate permanent displacements (up to 6 inches allowable per IBC) and evaluate liquefaction-induced lateral spreading if the toe of the slope contains loose sandy layers.
Standards that apply
ASCE 7-16 (Minimum Design Loads for Buildings and Other Structures, Chapter 12 – Seismic), IBC 2018 (Section 1806 – Excavations and Fill, Section 1807 – Retaining Walls), ASTM D3080-18 (Direct Shear Test for Shear Strength of Soils), ASTM D2166-16 (Unconfined Compressive Strength of Cohesive Soil), FHWA-NHI-05-089 (Mechanics of Slope Stability, circular failure methodology)
Frequently asked questions
What is the typical cost of a slope failure analysis in Sunnyvale?
The cost for a residential or small commercial slope failure analysis in Sunnyvale typically ranges between US$760 and US$2,760. This includes a site visit, soil sampling, basic laboratory tests (direct shear or triaxial), and a stability report with factor-of-safety calculations. Larger projects with multiple cross sections or seismic analyses may exceed this range.
Do I need a slope failure analysis for a retaining wall under 4 feet?
Not always, but if the wall is built on a natural slope steeper than 3:1 or within the influence zone of a known failure, the city of Sunnyvale often requires a stability assessment. The building department may waive it for flat lots with no fill. The key is whether the wall retains more than 4 feet of unbalanced fill — that triggers IBC Section 1807.2.
How does the clay soil in Sunnyvale affect slope stability?
Sunnyvale's alluvial clays, especially the older bay clay deposits, have high plasticity indices (PI 30–50) and can lose up to 50% of their undrained shear strength when wetted. This is a classic recipe for progressive failure, where a small initial slide increases moisture exposure and triggers a larger slump. Our analysis always includes a worst-case saturated condition using the residual shear strength.
What's the difference between a factor of safety of 1.3 and 1.5?
A factor of safety of 1.5 is the standard minimum for static, long-term conditions under IBC 2018. A value of 1.3 is sometimes accepted for temporary slopes (construction stage) or for seismic pseudo-static analyses. Running a slope at 1.3 long-term in Sunnyvale's clay is risky because seasonal wetting cycles can easily drop that margin below 1.0 within a few years.
