Sunnyvale sits on deep alluvial deposits from the Santa Clara Valley, with groundwater often encountered within 3 to 5 meters of the surface. This shallow phreatic level, combined with sandy to silty clay layers of variable density, makes sheet pile wall design particularly demanding for basement excavations, flood control channels, and utility vaults. A proper geotechnical investigation must first characterize soil stratigraphy and groundwater conditions — typically through a combination of standard penetration testing and undisturbed sampling. Before finalizing the wall embedment depth, the team cross-references these data with the site-specific seismic parameters per ASCE 7, which in Sunnyvale correspond to Site Class D or E depending on the measured shear wave velocity.
For Sunnyvale sites with water table at 2 meters, sheet pile wall embedment must extend at least 1.5 times the excavation depth below dredge line.
Method and coverage
The design process for sheet pile walls in Sunnyvale relies on vibratory or impact driving equipment capable of penetrating the dense sand lenses common in the region. During installation, the contractor monitors driving resistance and maintains alignment tolerances within 1:100 of wall height. For projects adjacent to sensitive structures, we complement the sheet pile wall design with a cimentaciones-sismicas evaluation to ensure that dynamic soil-structure interaction does not compromise adjacent foundations. Each wall section is analyzed under both static and seismic loading conditions — the latter following IBC 2021 ground motion maps for the San Francisco Bay Area. The analytical model accounts for soil arching, passive resistance development, and potential scour depths in water-side applications.

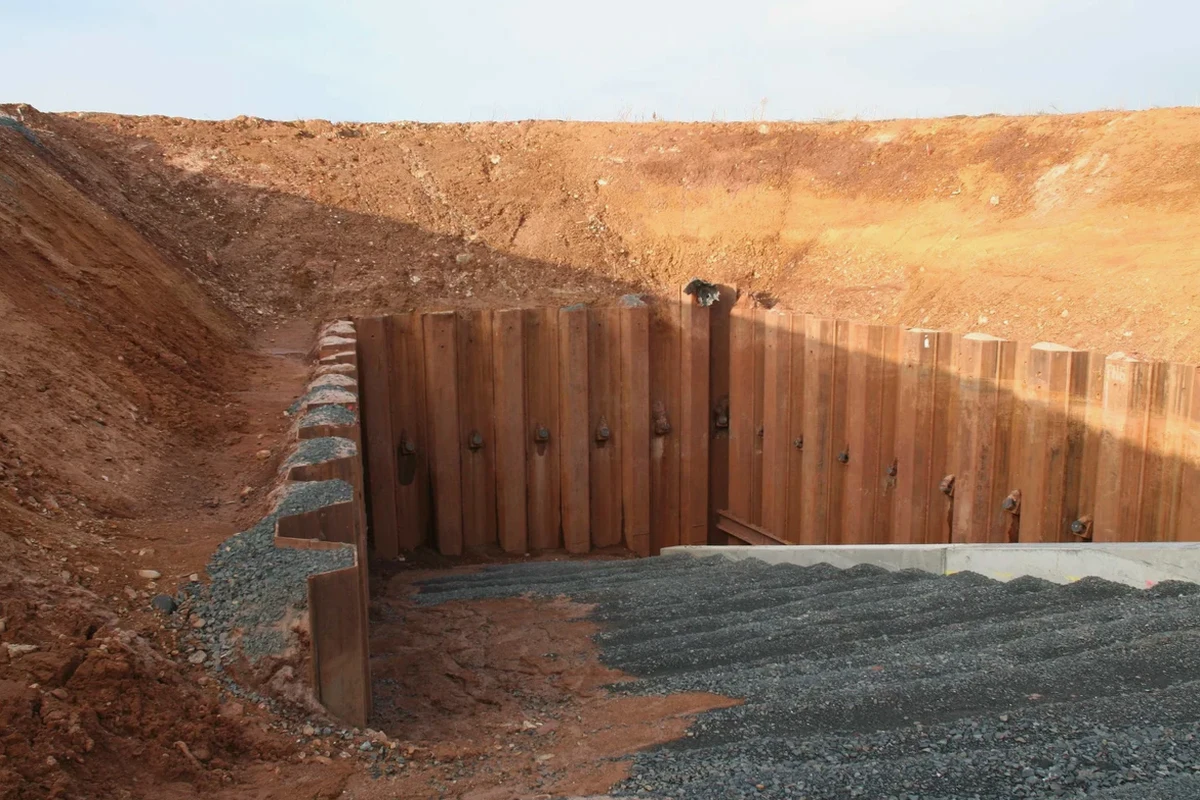

Technical reference image — Sunnyvale
Regional considerations
One recurring challenge in Sunnyvale is the presence of laterally continuous clay layers that can trap artesian pressures below a perched water table. If the sheet pile wall cuts through these layers without adequate drainage provisions, hydrostatic uplift forces may exceed the wall's resisting weight. We have observed cases where insufficient relief well spacing behind the wall led to sudden blow‑out during excavation. To mitigate this, the design must include weep holes or a permanent drainage blanket tied to a gravity outlet, and the factor of safety against piping should be verified using Terzaghi's critical hydraulic gradient formula.
For excavation depths up to 5 meters in Sunnyvale's cohesive soils, cantilever walls provide a cost‑effective solution. Our design checks toe stability against rotation and verifies that the passive resistance developed over the embedded length meets the required factor of safety.
02
Anchored Sheet Pile Walls
When excavation depth exceeds 5 meters or lateral loads are high, we design single or multi‑tier anchor systems. The anchor capacity is verified through pull‑out tests on the ground anchors, and the wall section is optimized to minimize steel weight while maintaining deflection limits.
03
Braced Sheet Pile Cofferdams
For dewatering and foundation construction in Sunnyvale's flood control channels, we design braced cofferdams with internal struts. The analysis includes groundwater seepage forces and checks the bottom stability against heave using the net pressure approach.
What soil parameters are critical for sheet pile wall design in Sunnyvale?
The key parameters are the effective friction angle (φ') and undrained shear strength (Su) of the retained soil, the unit weight, and the groundwater elevation. For Sunnyvale's alluvial deposits, we typically obtain these from SPT N‑values correlated to φ' via Peck's method, supplemented by triaxial tests on undisturbed samples.
How does the high water table in Sunnyvale affect wall embedment?
A shallow water table reduces the effective stress in the passive zone, so the required embedment depth increases. We compute the net passive pressure using submerged unit weights and apply a factor of safety of 1.5 against rotation. In extreme cases, a dewatering system or relief wells may be needed to lower the phreatic surface temporarily.
What is the typical cost range for sheet pile wall design in Sunnyvale?
The engineering fee for a complete sheet pile wall design package typically ranges between US$1.340 and US$5.400, depending on wall height, number of anchor tiers, and the complexity of the soil stratigraphy. This includes soil parameter interpretation, structural calculations, and construction drawings.
What seismic design considerations apply to sheet pile walls in the Bay Area?
Per ASCE 7, the wall must resist the peak ground acceleration for the Maximum Considered Earthquake (MCE). For Sunnyvale, the mapped PGA is approximately 0.6g. The seismic earth pressure is computed using the Mononobe‑Okabe method, and the wall must maintain a factor of safety of at least 1.2 against sliding and overturning under seismic loading.
