We recently evaluated a cut slope on a 4-story residential project near Sunnyvale’s Mathilda Avenue where the Franciscan Complex mélange had weathered into clayey colluvium with scattered sandstone blocks. The preliminary factor of safety came out at 1.18, well below the 1.5 required by IBC for permanent slopes. That kind of borderline condition is common in this part of Santa Clara County, where the transition from alluvial fans to bedrock ridges creates variable shear strength profiles. For that job we ran limit equilibrium analyses using both Bishop’s simplified and Spencer’s method, and supplemented the field data with a calicatas exploratorias to log the soil fabric directly. Sunnyvale’s combination of seasonal rainfall and steep lots near the foothills makes a rigorous slope stability analysis a non-negotiable step before excavation permits are issued.
A factor of safety below 1.3 in Sunnyvale’s colluvium usually means we need to recommend tieback anchors or a reinforced soil slope before the city approves the grading plan.
Method and coverage
Our field team mobilizes with a portable shear wave system and a digital inclinometer array to capture subsurface geometry in Sunnyvale’s tight residential lots. We typically start with two to four boreholes drilled to a depth 1.5 times the slope height, logging SPT N-values every 1.5 m and retrieving undisturbed tube samples for triaxial testing. The laboratory phase includes:
Consolidated undrained triaxial (CIU) on three specimens per soil unit per ASTM D4767
Direct shear on remolded samples for residual strength values per ASTM D3080
Atterberg limits and natural moisture content to correlate plasticity with potential slip surfaces
We run the stability models in Slide2 using the Morgenstern-Price method and check sensitivity against groundwater fluctuation, which in Sunnyvale can vary up to 6 m between wet and dry seasons. The output includes a factor of safety for each trial surface and a recommended mitigation strategy when the value falls below 1.3.

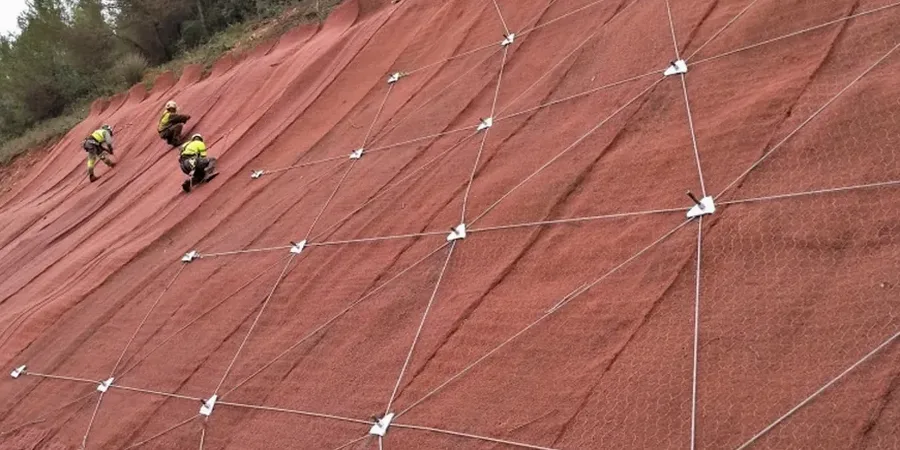

Technical reference image — Sunnyvale
Regional considerations
The contrast between the alluvial flats near Sunnyvale’s downtown and the steeper terrain around Permanente Creek is significant. In the flat areas, deep clay layers can undergo progressive failure when undercut by utility trenches. Up near the foothills, the Franciscan mélange often contains slickensided clay seams that reduce the mass shear strength to as low as 25 kPa. We have seen two retaining wall failures along Fremont Avenue where the designer assumed a homogeneous soil profile and ignored the presence of these weak seams. A proper slope stability analysis identifies those critical surfaces before the contractor places fill. We also include a seismic pseudo-static coefficient of 0.2 g for Sunnyvale given its proximity to the San Andreas and Hayward faults, which can drop the factor of safety by 0.3 or more.
Bishop simplified, Spencer, and Morgenstern-Price methods run in Slide2 with sensitivity analysis on cohesion, friction angle, and phreatic surface.
02
Seismic Slope Stability
Pseudo-static and Newmark displacement analyses using site-specific peak ground acceleration from USGS seismic hazard maps for Santa Clara County.
03
Mitigation Design Support
We recommend soil nail walls, tieback anchors, drainage blankets, or reinforced fill based on the critical slip surface geometry and required factor of safety.
How much does a slope stability analysis cost in Sunnyvale?
A typical residential slope stability study with two boreholes, triaxial testing, and limit equilibrium modeling ranges between US$1.180 and US$4.660 depending on access difficulty, number of trial surfaces, and reporting requirements. The city of Sunnyvale often asks for a geotechnical peer review on slopes steeper than 3H:1V, which may add to the total.
What soil conditions in Sunnyvale most commonly cause slope failures?
The Franciscan Complex mélange with its sheared clay matrix and sandstone blocks creates the highest risk. When these clay seams become saturated after winter storms, the drained friction angle can drop to 18 degrees or less. We also see failures in the old alluvial terraces where interbedded gravel and clay form perched water tables that reduce effective stress on potential slip surfaces.
Does Sunnyvale require a specific factor of safety for cut slopes?
Yes, the city adopts IBC 2018 which mandates a minimum factor of safety of 1.5 for permanent slopes under static conditions and 1.1 under seismic loading. For temporary excavations deeper than 1.5 m, a factor of safety of 1.3 is typically accepted, but the building official may request higher values if the slope is adjacent to a public right-of-way or an existing structure.
