Sunnyvale's rapid growth from orchards to a tech hub has reshaped its subsurface. Much of the city sits on alluvial fan deposits from the Santa Cruz Mountains, with layers of silty sand and clay interbedded with gravel. These heterogeneous soils demand rigorous compaction control during fill placement. Our team performs the field density test (sand cone method) to verify that engineered fills meet project specifications. We have tested compaction on dozens of sites near Lawrence Station Road, El Camino Real, and the Moffett Park district, where deep fills were placed to level former agricultural terrain. Before running the sand cone, we often coordinate with an ensayo spt to correlate blow counts with relative density in granular layers, giving clients a dual check on soil stiffness.
In Sunnyvale's alluvial soils, a single sand cone test can reveal compaction gaps that a nuclear gauge might miss due to moisture interference.
Method and coverage

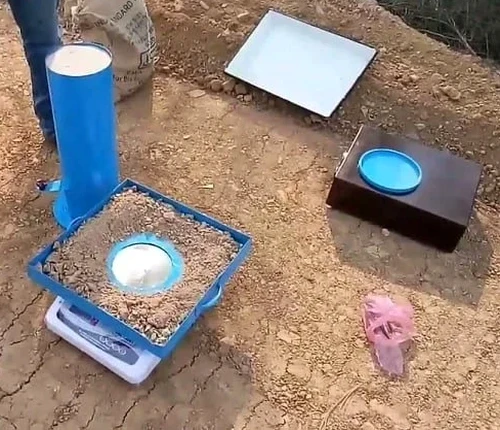

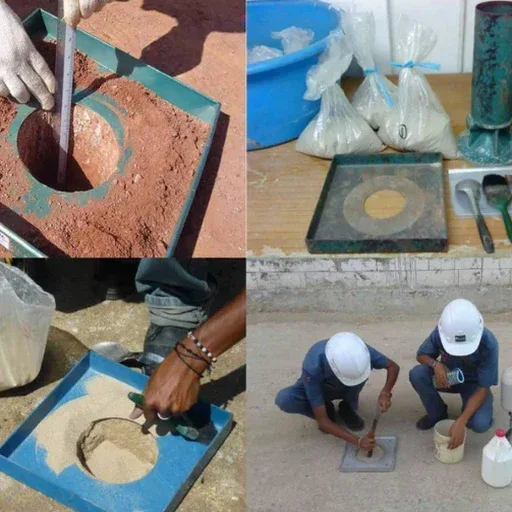

The sand cone apparatus is deceptively simple: a one-gallon jar, a base plate with a 6.5-inch circular opening, and dry Ottawa sand with known bulk density. We calibrate the sand cone in our lab before each field session, following ASTM D1556-16. The procedure involves excavating a test hole roughly 4 to 6 inches deep, collecting all excavated material, and then filling the hole with the calibrated sand from the cone. The volume of the hole is determined by the weight of sand used. The wet and dry densities of the soil are then calculated from the moisture content. In Sunnyvale, where the water table can be shallow near Calabazas Creek, we adjust the excavation depth to avoid groundwater interference. We also cross-check results with a ensayo proctor standard to confirm the maximum dry density target.
Technical reference image — Sunnyvale
Regional considerations
A contractor was placing structural fill for a two-story office building near Mathilda Avenue. The fill was silty sand from a nearby borrow pit, placed in 8-inch lifts. The field density test results showed dry densities between 92% and 96% of the Proctor maximum, but after the first rain event, the fill settled unevenly. We traced the problem to moisture variation: the sand cone method captured isolated low-density pockets near the fill edges. The lesson was clear: in Sunnyvale, where seasonal rainfall can shift moisture levels significantly, the field density test must be spaced at intervals no greater than 20 feet horizontally, especially near utility trenches and abutments.
We run standard and modified Proctor tests for Sunnyvale soils to establish the compaction curve and optimum moisture content specific to your borrow source.
02
Nuclear Gauge Correlation
For projects requiring rapid readings, we correlate sand cone results with nuclear density gauge measurements, providing a reliable secondary method for quality control.
Standards that apply
ASTM D1556-16 (Standard Test Method for Density and Unit Weight of Soil in Place by Sand-Cone Method), ASTM D698-12 (Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort), IBC 2021 Section 1804 (Excavation, Grading, and Fill)
Frequently asked questions
How many field density tests are required per lift in Sunnyvale?
Most city and county specifications require one test per 1,000 square feet per lift, or at least one test per 500 cubic yards of fill. For critical areas such as structural pads and retaining wall backfill, we recommend one test per 500 square feet.
Can the sand cone method be used in gravelly soils common in Sunnyvale?
Yes, but with a limitation: the maximum particle size should not exceed 2 inches. If the fill contains larger cobbles, we switch to the rubber balloon method or a large-scale sand cone with a 12-inch base plate.
What is the typical cost range for a field density test in Sunnyvale?
The cost per test point ranges from US$110 to US$150, including mobilization within 10 miles of our lab. Volume discounts apply for projects requiring more than 20 test points.
How do you handle wet weather conditions during field density testing?
If the soil is too wet to excavate a clean test hole, we postpone the test until surface moisture evaporates. For urgent cases, we use a nuclear gauge as a screening tool and confirm with a sand cone when conditions improve.
