In Sunnyvale, many of the older streets and new developments alike sit on alluvial soils that vary dramatically within a single block. We routinely see clay layers with low California Bearing Ratios right next to sandy lenses that test much higher. That is why we insist on running a proper Laboratory CBR test before any pavement design starts. Combining this data with a classification of soils gives us a complete picture of what the subgrade will actually support over time.
Soaked CBR values in Sunnyvale's clay layers often drop 40% or more compared to unsoaked conditions, a critical factor for pavement thickness design.
Method and coverage
The difference between a site near the Sunnyvale Caltrain station and one closer to the foothills can be striking. Near the station, the soils often show higher fines content and CBR values in the 5–8 range, while the coarser deposits east of Mathilda Avenue may reach 10–15. For each test we follow ASTM D1883-16, compacting samples at three energy levels and soaking them for four days to simulate worst-case saturation. We also cross-check results against field data from a plate load test when the design requires it. The final report includes the full stress-penetration curve and the corrected CBR at 0.1 and 0.2 inches of penetration.

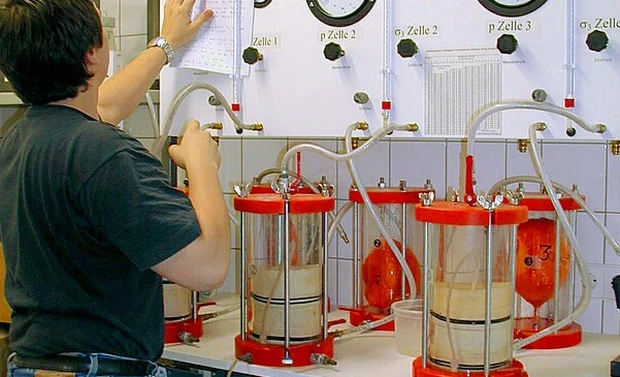

Technical reference image — Sunnyvale
Regional considerations
Sunnyvale sits within Seismic Zone 4 under the California Building Code (CBC 2022), and saturated subgrades can lose bearing capacity rapidly during ground shaking. A Laboratory CBR test performed on soaked samples replicates the post-seismic condition where pore pressures have equalized. Without this data, a pavement designed for dry conditions could fail after the first significant rain or earthquake. The risk is especially high near the Baylands where the water table sits only a few feet below grade.
Full procedure per ASTM D1883 including compaction at three energy levels, four-day soaking, and penetration testing with correction curves.
02
Field CBR (in-situ)
In-place CBR testing on compacted subgrades using a dynamic cone penetrometer for rapid verification during construction.
03
CBR for Design
We combine CBR results with traffic loading data and local experience to recommend pavement layer thicknesses and material specifications.
Standards that apply
ASTM D1883-16, AASHTO T 193, CBC 2022 (California Building Code)
Frequently asked questions
What is the difference between soaked and unsoaked CBR?
The soaked CBR simulates worst-case saturation after rain or a high water table. In Sunnyvale's clay soils, soaked values can be 40–60% lower than unsoaked. We always report both values so the engineer can decide the design condition.
How much does a Laboratory CBR test cost in Sunnyvale?
A standard Laboratory CBR test typically ranges between US$120 and US$180 per sample. The price may vary depending on the number of samples and whether field compaction verification is also required.
How long does the test take?
The full procedure takes about five days from sample preparation to final report: one day for compaction, four days for soaking, and one day for penetration testing and data analysis. We can prioritize urgent projects if needed.
Can I use CBR results for pavement design in all of Sunnyvale?
CBR values are site-specific. A test from one location near El Camino Real will not represent a site near Lawrence Expressway. The alluvial deposits in Sunnyvale change laterally, so we recommend at least one test per distinct soil unit identified during the site investigation.
