Sunnyvale’s alluvial soils, deposited by ancient creek systems, vary dramatically within a single block. We’ve seen clay layers near the bay that compress under load, and sandy lenses near El Camino Real that can shift if not properly drained. That’s why retaining wall design here starts with a thorough subsurface investigation. Without understanding the soil profile, any wall is a gamble. Our team combines local experience with lab data from granulometria and limites-atterberg to classify the ground before we propose a single dimension. This upfront work saves clients from costly overdesign or, worse, structural failure.
Sunnyvale’s alluvial soils can turn a standard wall into a major risk. Our design accounts for clay heave, sandy erosion, and seismic loads.
Method and coverage
Compare two typical Sunnyvale scenarios: a residential site near Lakewood Park with expansive clay, versus a commercial lot near Lawrence Station with sandy fill. For the clay site, we design walls with deeper embedment and drainage composite layers to manage hydrostatic pressure. For the sandy fill, we focus on compaction control and tie-back anchors. Every retaining wall design we deliver includes a factor of safety compliant with ASCE 7 and IBC. We also model seismic earth pressures using the Mononobe-Okabe method, critical given the region’s proximity to the San Andreas fault. Our deliverables: cross-sections, reinforcement schedules, and drainage plans tailored to Sunnyvale’s microclimates.

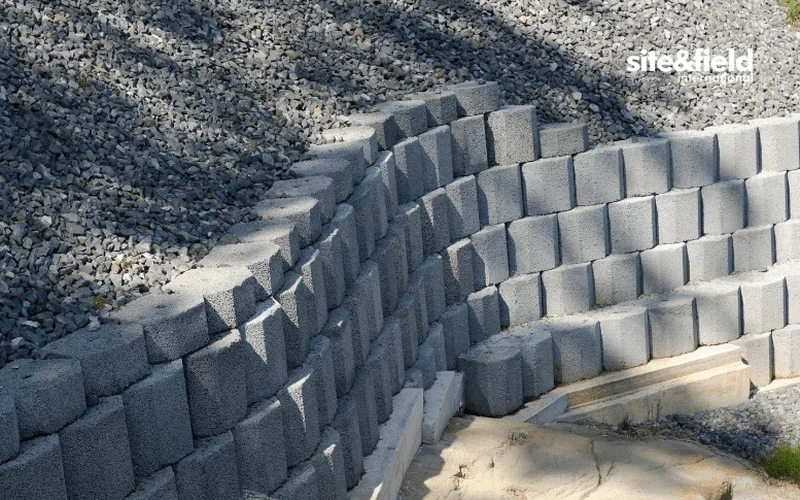

Technical reference image — Sunnyvale
Regional considerations
Sunnyvale sits on deep alluvial deposits with groundwater typically 8–12 feet below grade. In winter, the water table can rise to within 4 feet of the surface. A retaining wall without proper drainage will see hydrostatic pressure triple the active load — walls crack, tilt, or collapse. We’ve seen this repeatedly in older commercial strips. Our designs incorporate gravel drains, weep holes, and waterproofing membranes. We also check for liquefaction potential in sandy layers during seismic events. This is not theoretical. It’s a real risk in Sunnyvale’s soil profile.
Boreholes, SPT, and lab testing to determine soil stratigraphy, shear strength, and groundwater conditions. Data used to calculate active and passive pressures.
02
Structural Wall Design & Review
We prepare reinforcement layouts, drainage plans, and seismic load calculations. Compatible with concrete, masonry, MSE, and soldier pile walls.
Standards that apply
ASCE 7-16 (Minimum Design Loads for Buildings and Other Structures), IBC 2021 (International Building Code, Chapter 18), ASTM D1586-18 (Standard Test Method for SPT)
Frequently asked questions
What retaining wall types work best in Sunnyvale clay soils?
Cantilevered concrete walls with deep footings and drainage blankets perform well. For expansive clay, we recommend a 12-inch gravel backfill zone and a waterproof coating on the wall face.
How much does a retaining wall design cost in Sunnyvale?
Typical geotechnical design fees for a residential retaining wall range from US$1,070 to US$3,790. Commercial walls with complex loading or seismic analysis fall at the higher end.
Do I need a permit for a retaining wall in Sunnyvale?
Yes. Any wall over 4 feet in height requires a building permit and engineered plans. We prepare sealed calculations and details that meet Sunnyvale’s municipal code and IBC requirements.
