In Sunnyvale, the near-surface geology is dominated by alluvial fan deposits and old Bay muds — fine-grained soils with low to moderate strength that demand careful reinforcement design. A proper geogrid specification begins with site-specific characterization: the tensile strength, aperture geometry, and junction efficiency must match the expected in-service strains. Local practice follows AASHTO M 288-21 for geogrid classification and ASTM D6637 for wide-width tensile testing. Before selecting the reinforcement, engineers typically run a placa de carga to verify the subgrade modulus and a ensayo SPT to profile soil layers down to 10 m.
A correct geogrid specification can reduce base thickness by 30 percent while maintaining the same pavement structural number.
Method and coverage
The field crew mobilizes a small backhoe or track-mounted excavator to open test pits at depths of 2 to 4 m. In those pits, the engineer extracts undisturbed block samples for index tests. The laboratory then determines the soil classification (ASTM D2487), moisture content, and compaction characteristics via ensayo Proctor. With that data, the geogrid specification defines the allowable tensile strength at 5% strain, the rib thickness, and the minimum aperture dimension. Sunnyvale projects often require biaxial geogrids for base reinforcement under parking lots or access roads. The final design report includes:
Calculated tensile load per meter of width
Creep reduction factor for the expected service life
Connection strength to the adjacent fill layer

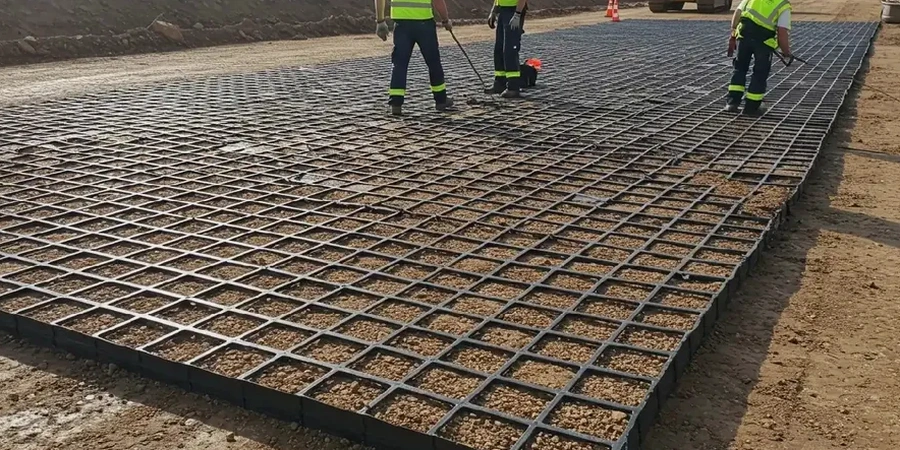

Technical reference image — Sunnyvale
Regional considerations
In Sunnyvale, many old fills and undocumented compacted layers hide below pavement. If the geogrid specification ignores the actual subgrade modulus, differential settlement can crack the asphalt within two years. The risk is higher near the historic creek channels where soft silt lenses occur. A site-specific field investigation — at least two test pits per project — is the only way to capture those weak zones. Skipping that step often leads to over-reinforcement or, worse, under-design.
Full design report with reinforcement layout, pullout capacity checks, and construction specifications. Includes subgrade modulus verification via plate load test.
02
Material Certification Testing
Independent laboratory verification of tensile strength, aperture dimensions, and junction efficiency per ASTM D6637. Certification for project submittals.
What is the typical cost range for a geogrid specification in Sunnyvale?
The typical range is between US$400 and US$1,280 for a standard residential or light commercial project, depending on the number of test pits and laboratory tests required.
How deep should test pits be for geogrid specification?
Test pits are usually excavated to 2 to 4 meters below grade. In Sunnyvale, that depth captures the alluvial and fill layers that control subgrade stiffness. Deeper pits are needed if soft silt lenses are suspected.
Which geogrid type works best for Sunnyvale's clay-rich soils?
Biaxial polypropylene geogrids with apertures between 30 and 40 mm are standard. The rib geometry must provide adequate interlock with the angular aggregate used in base courses. Uniaxial grids are reserved for slope reinforcement.
Do you include creep testing in the specification?
Yes, creep testing per ASTM D5262 is part of the full specification for permanent structures. The creep reduction factor is calculated for a 75-year design life, as required by AASHTO LRFD guidelines.
